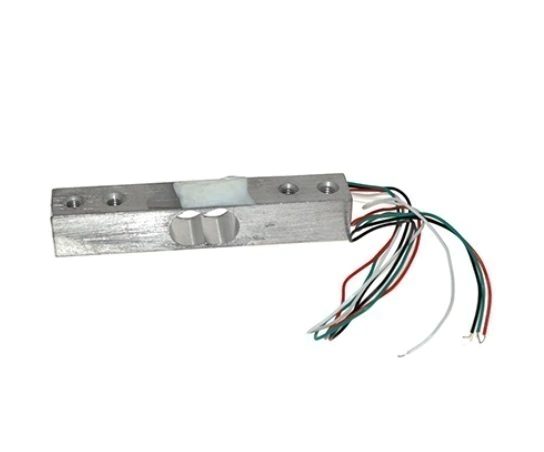

Description: Kitchen scales weighing sensors Four-lead, easy to use, plus 5-10V drive voltage, the force changes toavoltage signal output directly. Dimensions: 12.7mm * 12.7mm * 75mm One end of the sensor through the screw hole is fixed, and the other endleft floating state, applying a gravity direction according to label directions. Particular attention must not directly pressing the white plastic cover part, soas not to disrupt the sensor.
Specification: Working voltage: 3~12 VDC Max. working voltage: 15 VDC Rated output: 1.0 ±0.15mV/V Rated load: 5kg Nonlinearity: 0.03 %F.S Lag0.03 %F.S Repeatability: 0.03 %F.S Creep (5 min.): 0.03 %F.S Output temperature influence: 0.01 %F.S/C Zero temperature influence: 0.05 %F.S/C Zero balance: ±0.1000 mV/V Output impedance: 1000±10% OHM Insulation resistance: 1000 MOHM Safe overload: 150 %F.S Extreme overload: 200 %F.S Working temperature: '-20~60 C Input impedance: 1115±10% OHM Dimension: 150×150 mm
